TW05 – 310DC Bus

Standard Products

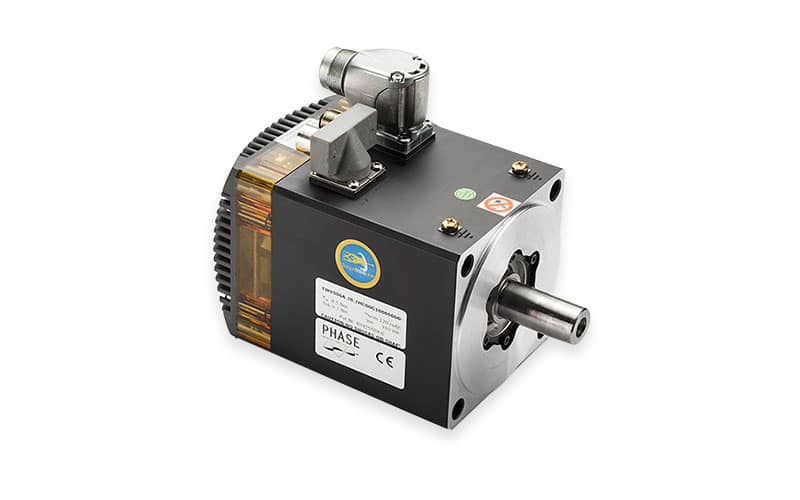

Integrated Servo Drive - TW05 - 310DC Bus

Fan and water cooled torquewire system from 2,4 Nm to 4 Nm

The TW series is particularly innovative in the electromagnetic compatibility approach.

As there are no cables between drive and motor, and also between sensor and drive, the system has a very low RFI emission signature and an equally reduced susceptibility to electromagnetic interference.
The drive is designed and validated for high level vibration and wide temperature range. The design is free from electrolythic capacitors, thus enabling long life even in temperature.

Typical Supply Voltage

310-560 Vdc

Protection class

IP67

Hardware configuration

Size Code Nominal Speed [rpm] Nominal Torque [Nm] Nominal Power [W] Cooling Type
Size 05 0503A.30.2 2100 2,4 580 Natural cooling
0506A.20.2 1500 4 630
